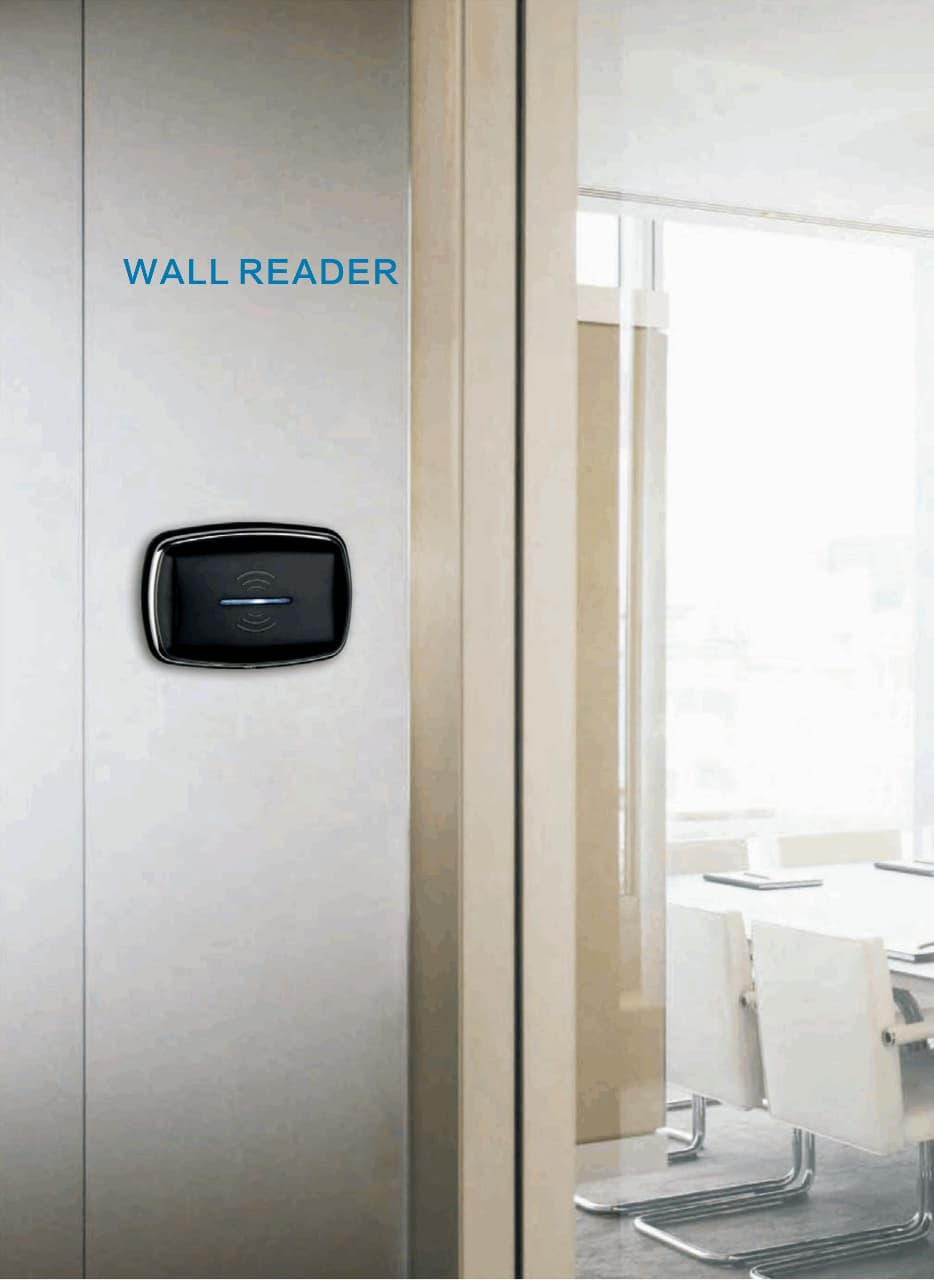

Wall Reader
Introduction
- Hotel system card support
- 0–3cm reading distance
- Plug-and-play operation without extra software
- Controls for electric drop bolts, electromagnetic locks, or elevator buttons
- Wiegand 26 output signal support
- Stainless steel reader with dust and water-resistant rubber gasket
Specifications
- Power supply: 12V DC
- Working current: 100mA
- Card type: Mifare 1
- Reading distance: 0-30mm
- Input method: Exit switch signal
- Output method: Single-group dry contact (NO/NC/COM) and Wiegand 26 output
- Working temperature: -20°C-60°C
- Storage temperature: -25°C-70°C
- Storage humidity: 5-95% RH
